PocketStrobe LED
EXTREMELY PORTABLE AND WATERPROOF STROBE
The PocketStrobe LED is the PowerStrobe’s waterproof little brother and the ideal tool for inspecting machine parts like the forming table, trim squirts, HP showers and sheet edges. Freeze the moment and get the insight you are looking for.
In terms of flash rate and light intensity the Pocket Strobe LED is second to none among the portable LED strobes world-wide. Cutting edge LEDs, intelligent electronics and a high quality optical assembly assure a bright and homogeneous illumination of fast moving objects.
The PocketStrobe LED fits in the palm of your hand, is robust and waterproof. Ideal for around the paper machine.
The number of applications in the paper industry is almost countless:

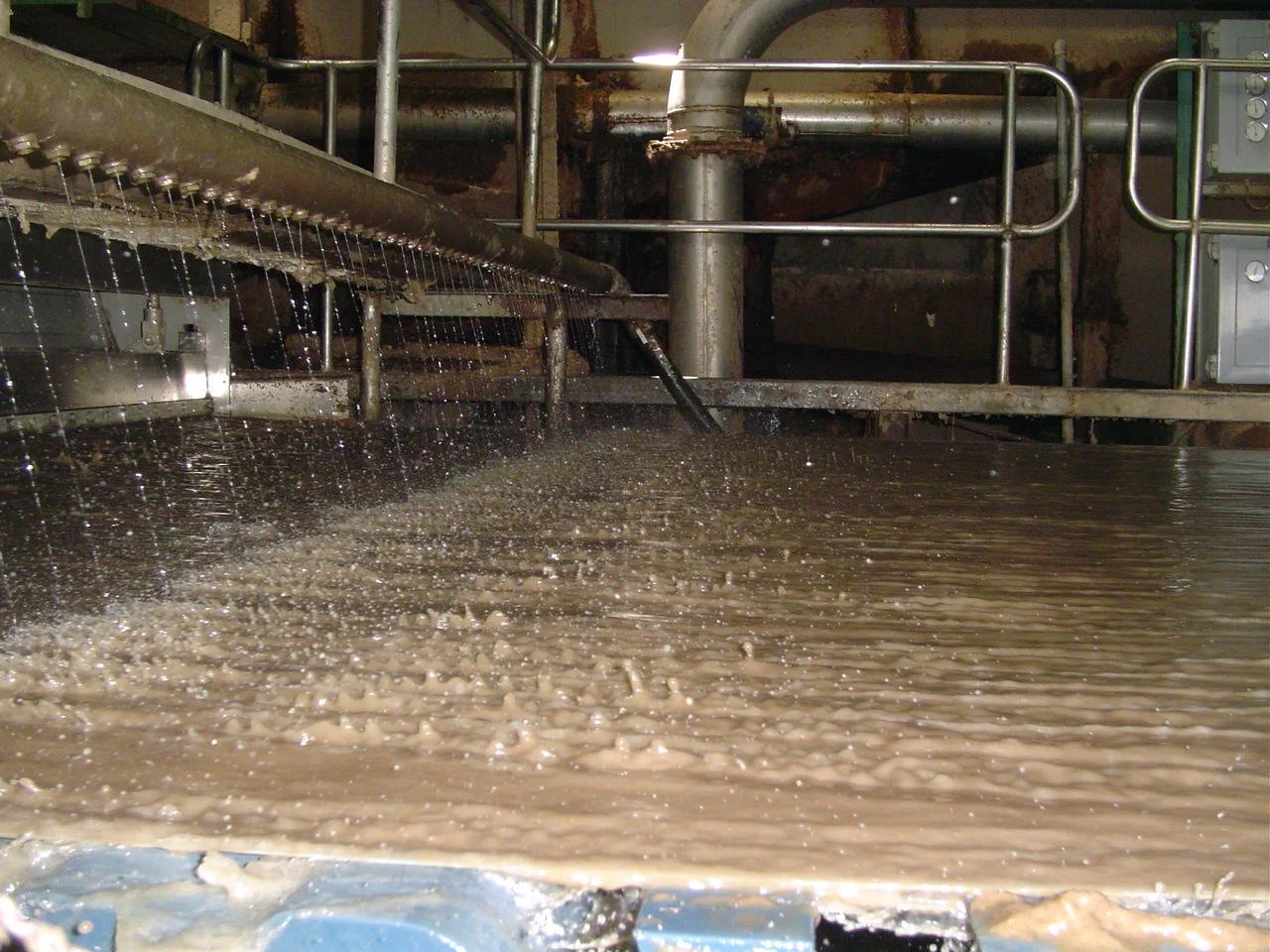

Checking turbulence and stock jumping on the wire
The jet impingement angle and forming table dewatering
Dewatering pulsations, causing mass variations
Inspecting trim nozzles and HP showers on air-enclosures
Checking sheet drop-offs on the pickup felt
And so on…
A unique feature of the PocketStrobe LED is that the flash duration can be set independently from the flash frequency.
The shorter the flash duration, the less distance is traveled by the viewed object and the sharper the image will get. However, the longer the flash duration, the more the object is illuminated. The choice is up to you!
“Fits in your pocket, 100% waterproof and very affordable - the PocketStrobe LED is perfect for a quick inspection.”
| Specifications | PocketStrobe LED |
|---|---|

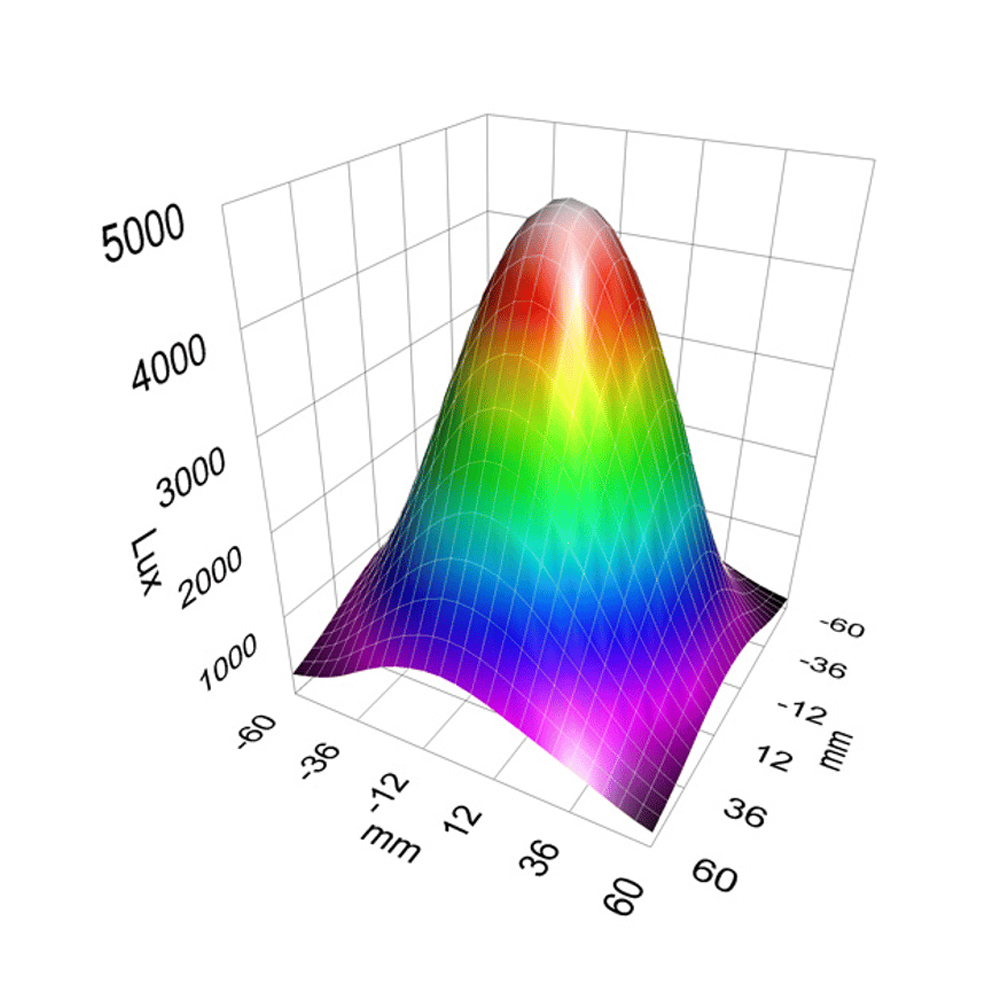

| Max. light output | 4800 lux @ 0.3 m (1 ft) distance with 100% intensity, 6000 FPM |
| Flash Rate range | 30 - 300 000 FPM (Flashes Per Minute) |
| Flashcolor | Approx. 6500 K |
| Protection class | IP68 |
| Dimensions | 191 x 82 x 60 mm | 7.5 x 3.2 x 2.4 in |
| Weight | 0.4 kg | 0.9 lb (including batteries) |
| Batteries | 3 x AA - size disposable batteries (rechargeable NiMH batteries are optional |
| Battery life | Approx. 5 hours @ 6000 FPM (dependent on settings) |

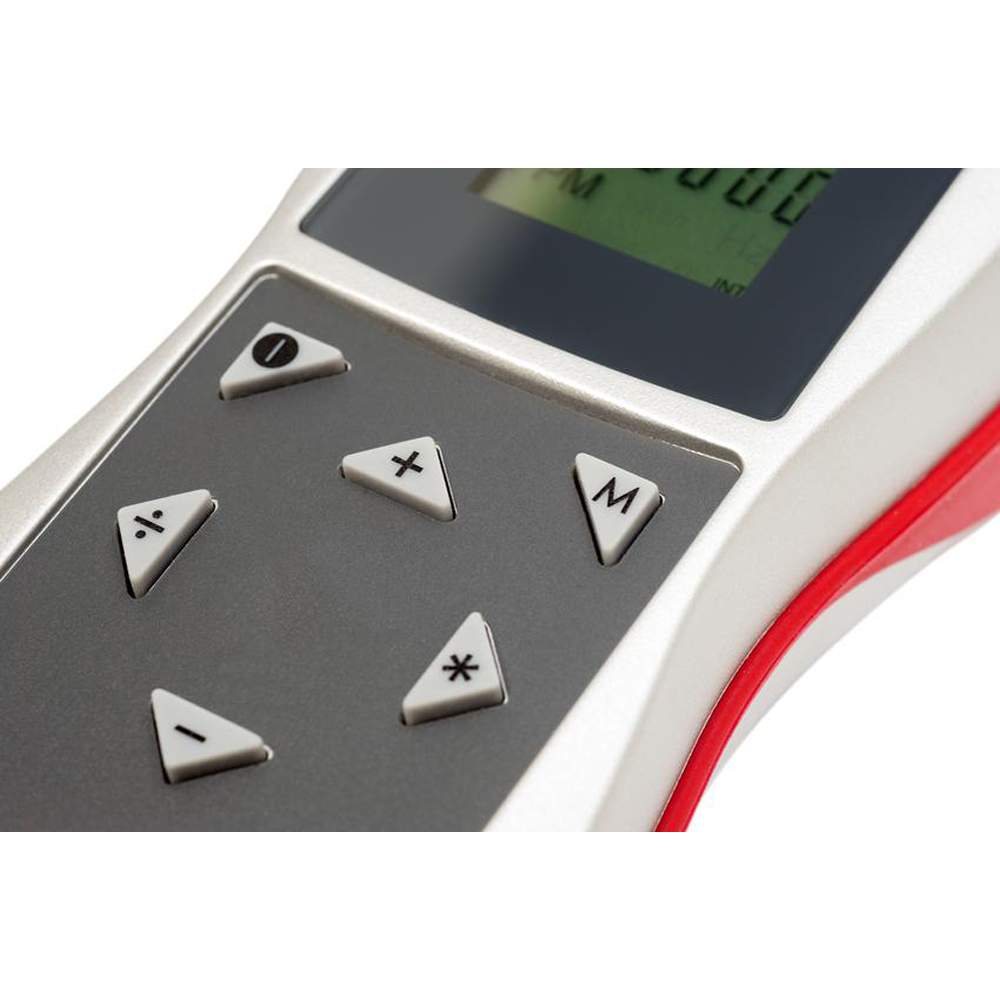

| Available settings and functions | Flash duration (shorter = sharper image, longer = more illumination |
| Flash frequency and duraction are set independently from each othe | |
| Double or halve the current flash rate with 1 button |
