SpeedController
CONTROLS BOTH AIRSPEED AND TRUESPEED SENSOR

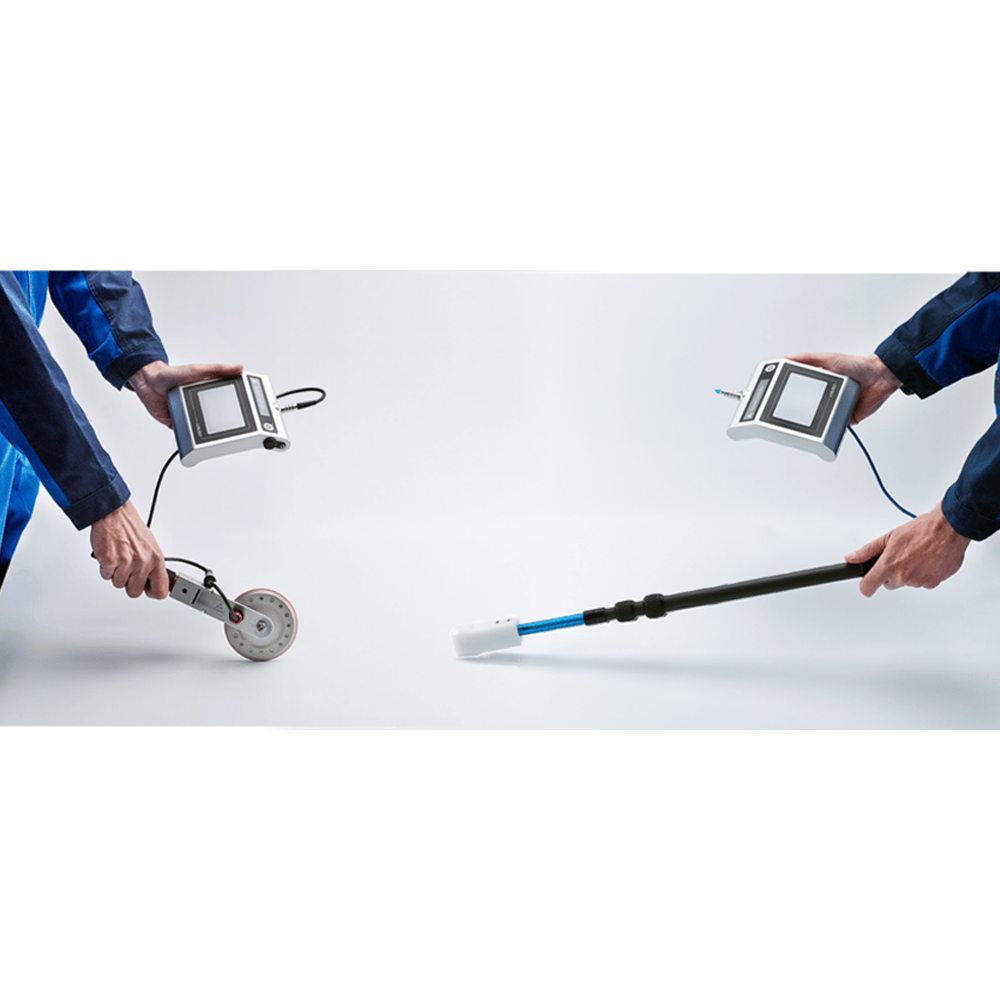

The SpeedController reads and stores the measurement data of both the AirSpeed and TrueSpeed Sensor: a two-in-one control unit for both sensors.
Future proofed with you in mind
The Feltest SpeedController lets you store and organize all of your measurement data in one place - and then compare values day by day and (tender) side by (drive) side.

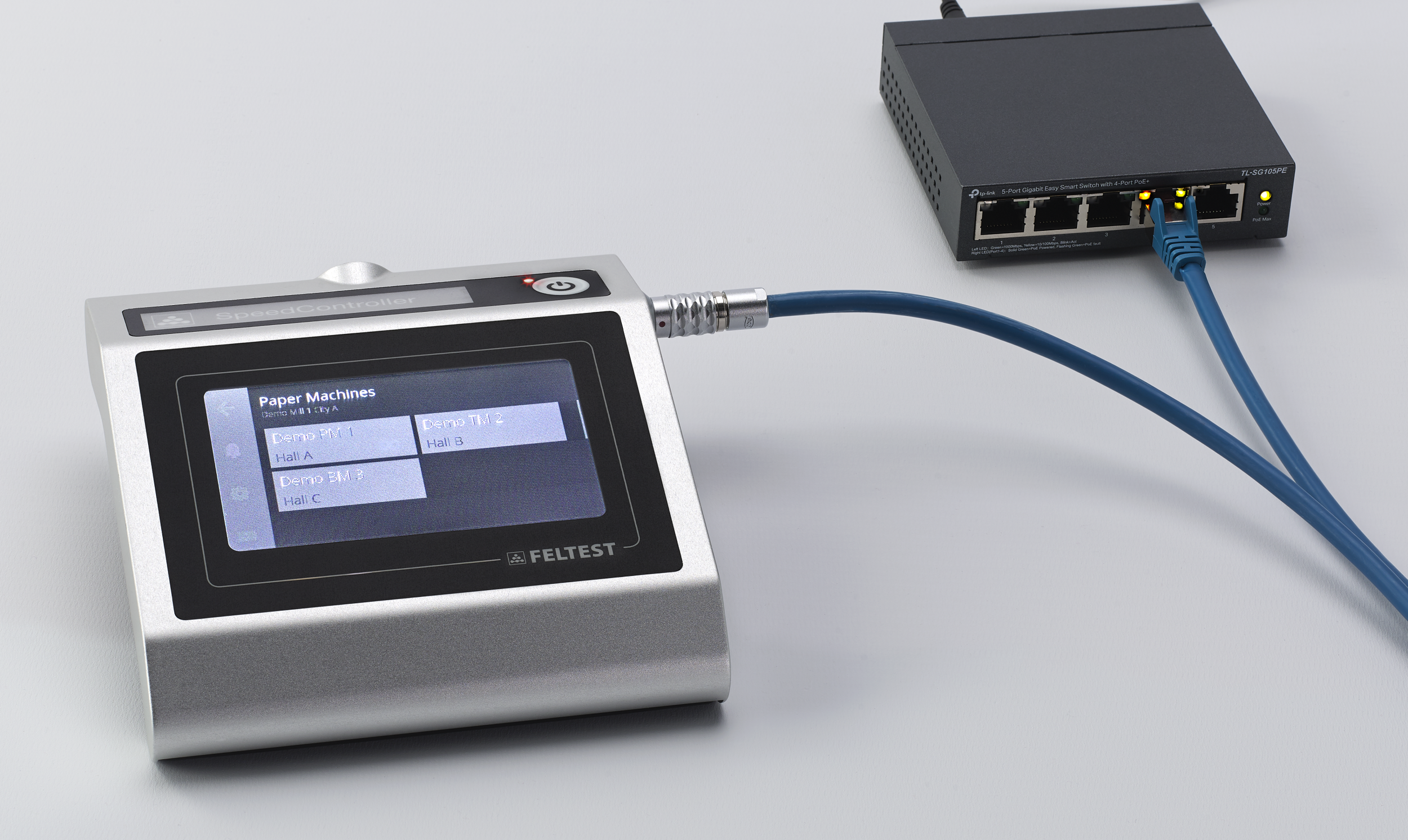

It connects to the internet - and your PC - so you stay updated with the latest firmware updates. Feltest will continuously add new online services, both free and paid, to support you toward better Paper Machine Clothing.
Designed for life in the paper mill

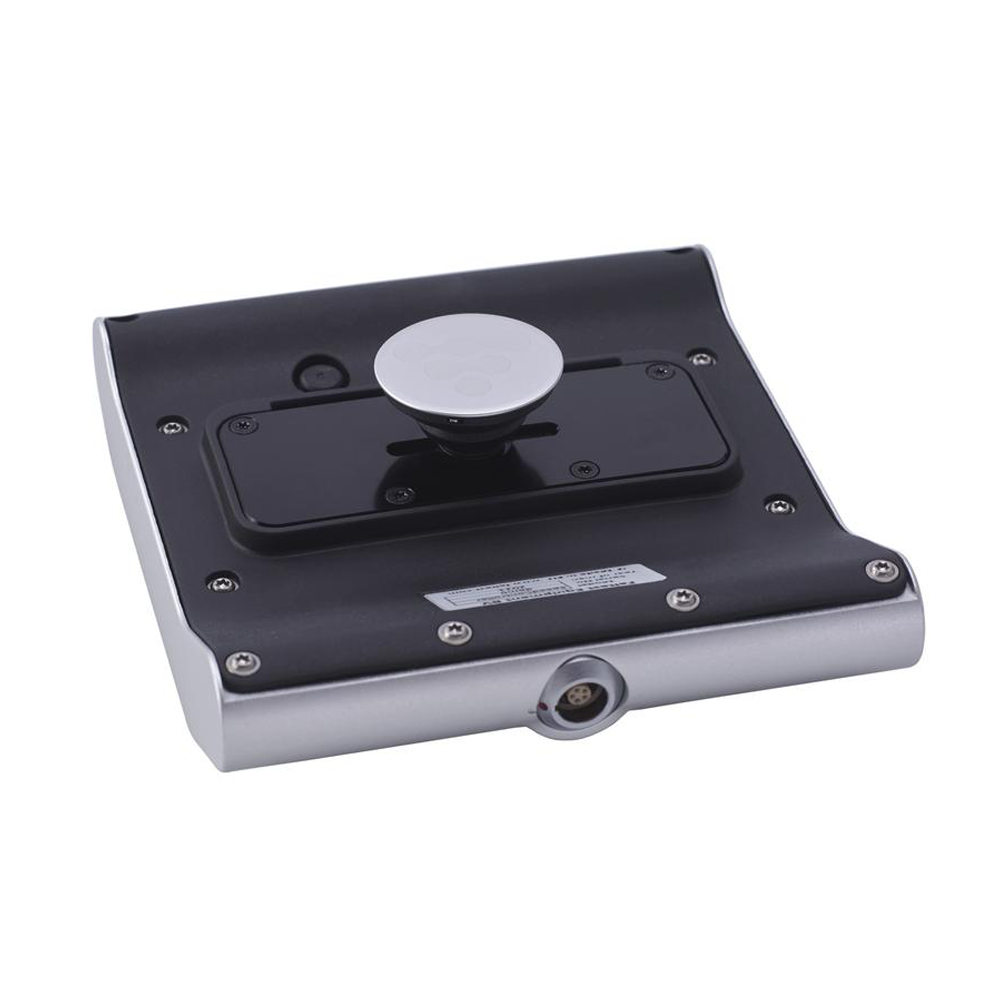

The SpeedController’s robust aluminum casing is fully waterproof, and thanks to its large touchscreen, the device is easy and intuitive to use, even when fully covered by process water.
Perfect for the harsh conditions at the paper machine
Waterproof 4.3” industrial touchscreen
No software on your PC needed
One controller for two sensors!
Designed for the future
The SpeedController is Feltest’s first device that automatically receives software updates through the internet. Note that an internet connection is not required to do measurements or to download the measurement data to your pc.
Tip! Also read this related whitepaper:
| Correct felt permeability: how open do press felts need to be? |
“The SpeedController is Feltest’s first internet connected device, and the start of many interesting things to come...”
| Specifications | SpeedController |
|---|---|
| Touchscreen | 4.3" waterproof resistance type |
| Supported browsers | Recent versions of Chrome, Edge and Firefox |
| Protection level | IP68 (when a sensor is connected) |
| Dimensions | 146 x 152 x 40 mm | 5.7 x 6 x 1.6" |
| Weight | 0,7 kg | 1.5 lbs. |
| Battery type | 4x AA-size 2500 mAh NiMH cells |
| Battery charging | Through the supplied PoE+ network switch or any other PoE+, IEEE 802.3at, type 2, mode A, switch |
| Feltest Connect PoE+ Network Switch & Charger | 5 port network switch, of which 4 ports have PoE+ (802.3af/at standard); Power in: 100-240V DC |
| Protective carrying case | Sturdy case of 560 x 350 x 220 mm | 21.5 x 14 x 9"; Weight 5 kg | 11 lbs. |
Get your SpeedController quote
Buy directly in our ONLINE STORE or request your quotation and our sales team will contact you shortly.
Our SpeedController customers also use…

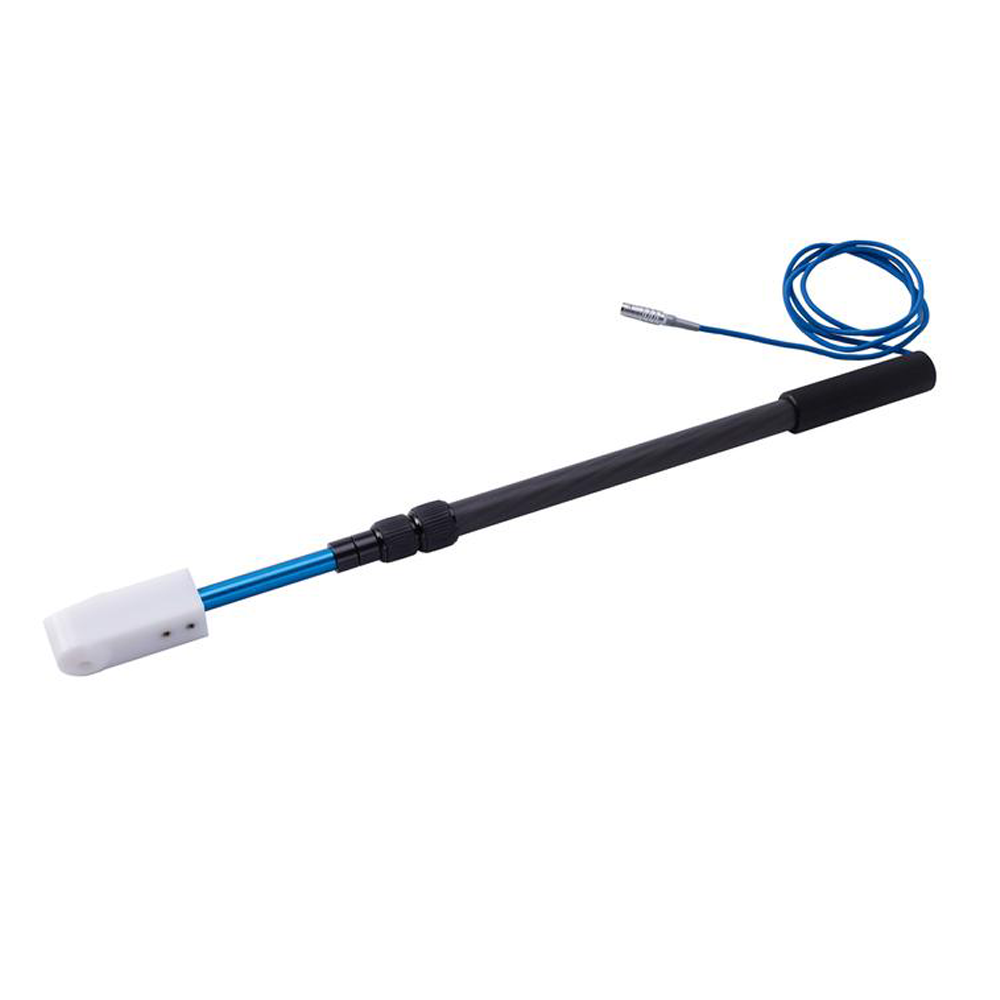

AirSpeed Sensor
MEASURE PRESS FELT PERMEABILITY ON THE FLY
Permeability is key to understanding your felt’s condition. The Feltest AirSpeed Sensor helps you better plan your machine downtime, use the right amount of felt cleaning agents, and troubleshoot any performance problems.

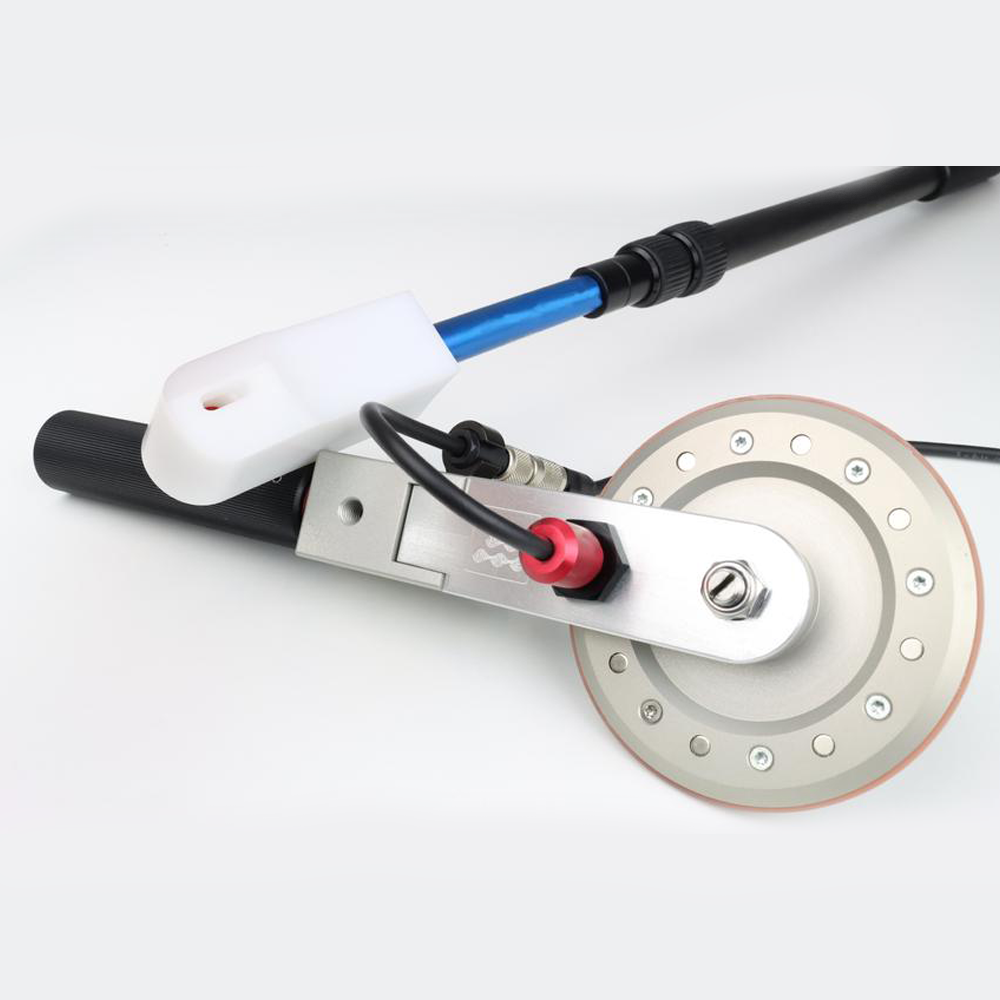

TrueSpeed Sensor
MEASURE WHAT MATTERS: THE SURFACE SPEED
The TrueSpeed Sensor is the fastest way to check the actual surface speed of your rolls and machine clothing – helping you easily identify speed differences caused by input errors and slipping drive rolls.
Caliper Profiler
ESTIMATES REMAINING LIFE OF FORMING FABRICS
The Feltest Caliper Profiler measures the caliper, or thickness of forming fabrics and press felts on the fly.
Caliper values help to estimate the remaining life of forming fabrics. For poorly dewatering press felts, the caliper helps to differentiate compaction, contamination and wear.
