Feltest FiberScanONE

Article number: 000111

CHECK FOR DRAINAGE AND PULSATION IN YOUR FORMING SECTION

The forming section has a big influence on both the paper machine’s efficiency and the quality of the produced paper or board. Use the FiberScanONE to monitor analyse and optimize the drainage process by measuring the amount of water on the forming fabric after each dewatering element. Investigate the effects of forming fabric designs, fabric wear, machine settings, and chemical dosages. Make trend curves to understand what is actually happening in the forming section.

€47,082.- excl. sales tax

REQUEST QUOTE

BUY ONLINE

Advanced microwave technology

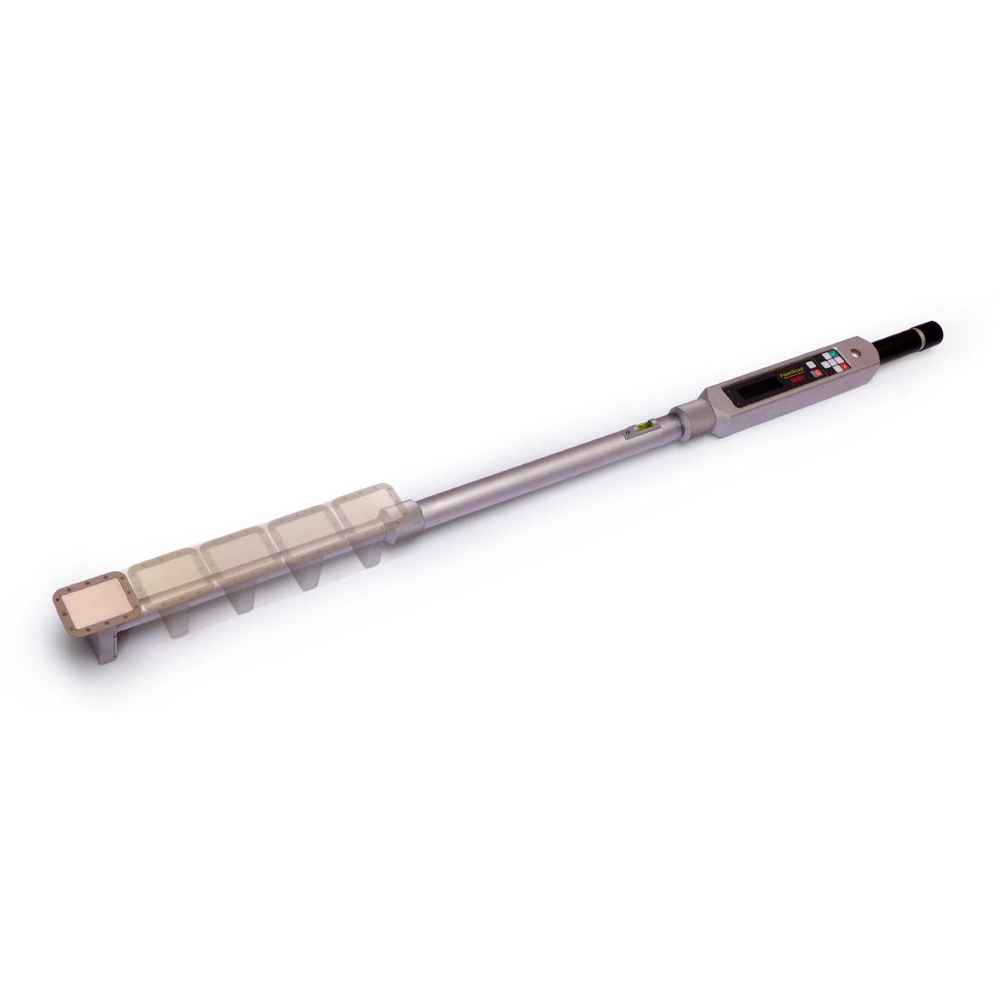

The Feltest FiberScanONE uses an innovative and patented microwave sensor, exclusively designed for the demanding conditions in the paper industry. The field of applications is extremely wide, ranging from low-speed board machines up to the fastest newsprint machines. No calibration is needed; just bring the measuring head up to working temperature and start!

As the microwave sensor only measures water, the readings are not influenced by the forming fabric or by filters like Ti02. In contrast to a gamma gauge, the readings of the FiberScanONE are not affected by metal parts close by. This allows measurements at more positions on top and gap formers; helping you to understand the drainage process even better.

FiberScanONE: a safe investment

Additionally to the innovative technology, the Feltest FiberScanONE has many more advantages. To mention a few:

- Increased operator safety

- Easy traveling without formalities, licenses, or bureaucracy

- Firmware upgrades are free of charge

- The hardware can always be upgraded to the most recent version

- Quick and reliable service

Your investment in FiberScan technology is safe for years to come.

Download the brochure or manual

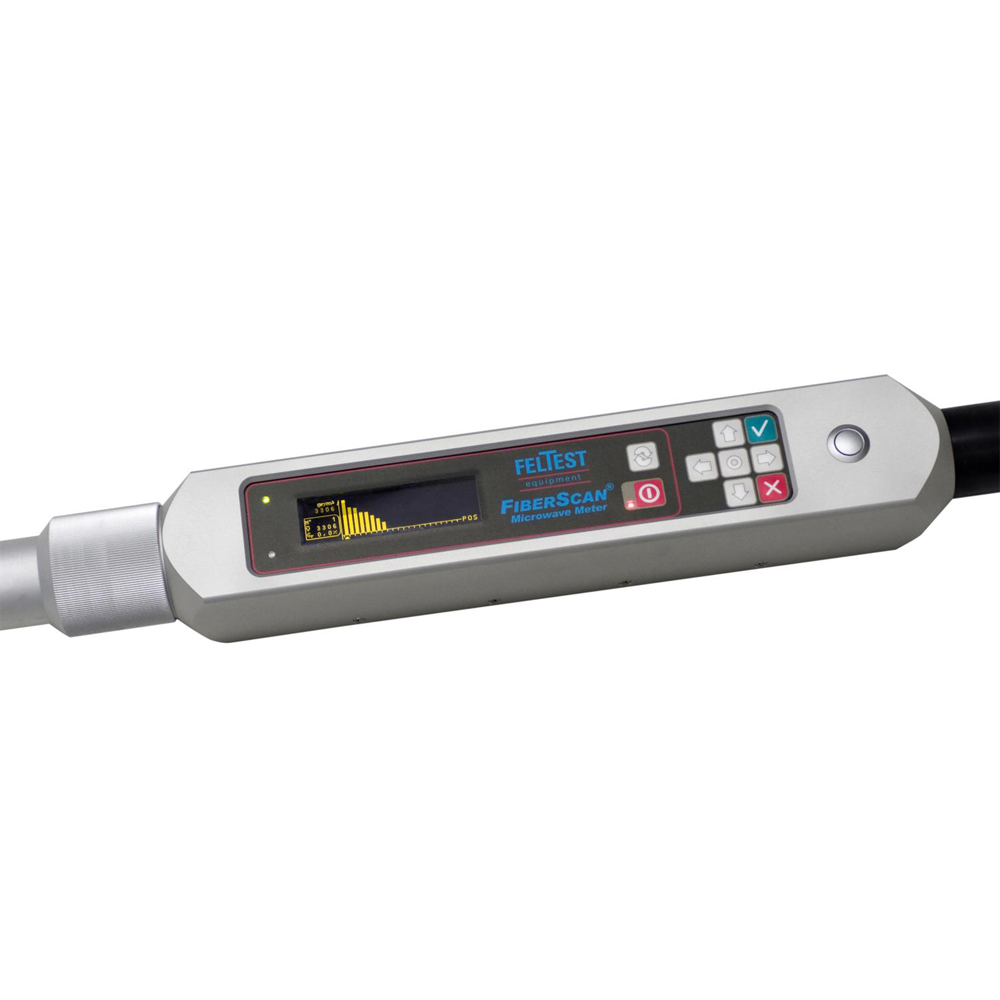

The ultra-bright display shows a lot of useful information, like a graphical drainage chart or the cross machine direction profile. The display can be reversed for left-hand or right-hand use by pressing just one button. With every measurement also the quality of the test result is indicated, giving the user important and timely feedback. Improved efficiency comes from details like these.

DOWNLOAD BROCHURE

DOWNLOAD MANUAL

FAQ's

The gamma gauge uses a radio-active source to measure the total mass (i.e. forming fabric, water, fibers, and fillers) above the sensor surface. The FiberScanONE uses a microwave sensor to measure the amount of water (and nothing else) above the sensor surface.
Therefore, measuring dewatering in a paper machine is simpler and safer with a FiberScanONE.
The field of applications is extremely wide, ranging from ultra-low grammages on high-speed tissue machines, up to low-speed pulp machines with high grammages, lots of water, and high process water temperatures. The FiberScanONE handles it all.
In both cases: no. In press felts and in the sheet after the press nip, there is too little water left for the FiberScanONE to function, it can only be used in the forming section.
As the microwave sensor only measures water, the readings are not influenced by the forming fabric or by any kind of filler. In contrast to a gamma gauge, the readings of the FiberScanONE are NOT affected by metal parts close by. This allows measurements at more positions on top and gap formers; helping you to understand the drainage process even better.
No, the FiberScanONE uses a completely safe microwave sensor, somewhat comparable to a cell phone. No special permits are required and there are no travel restrictions.

The FiberScanONE uses advanced microwave technology to make a forming fabric drainage analysis.


        Specifications
        FiberScanONE

        Measuring range
        10 - 48.000 g/m2 H2O

        Measuring method
        Microwave frequency resonance

        Measurement rate
        256 values/s (1.024 values/s in FFT mode)

        Field penetration
        Approx. 48 mm | 1.89 in

        On board memory
        Enough for > 3000 measurements

        Language instrument & instruction manual
        English

        PC connection
        Through Bluetooth or USB

        Rechargeable battery
        Li-ion

        Operating temperature range
        0° – 80° C | 32° – 176° F

        Measuring Head Dimensions (LxWxH)
        138 x 74 x 77 mm | 5.43 x 2.91 x 2.03 in

        Overall dimensions (LxWxH)
        1.140 - 1.540 x 65 x 53 mm | 45 - 60 x 2.6 x 2.1 in

        Total weight instrument
        3.6 kg | 7.9 lb

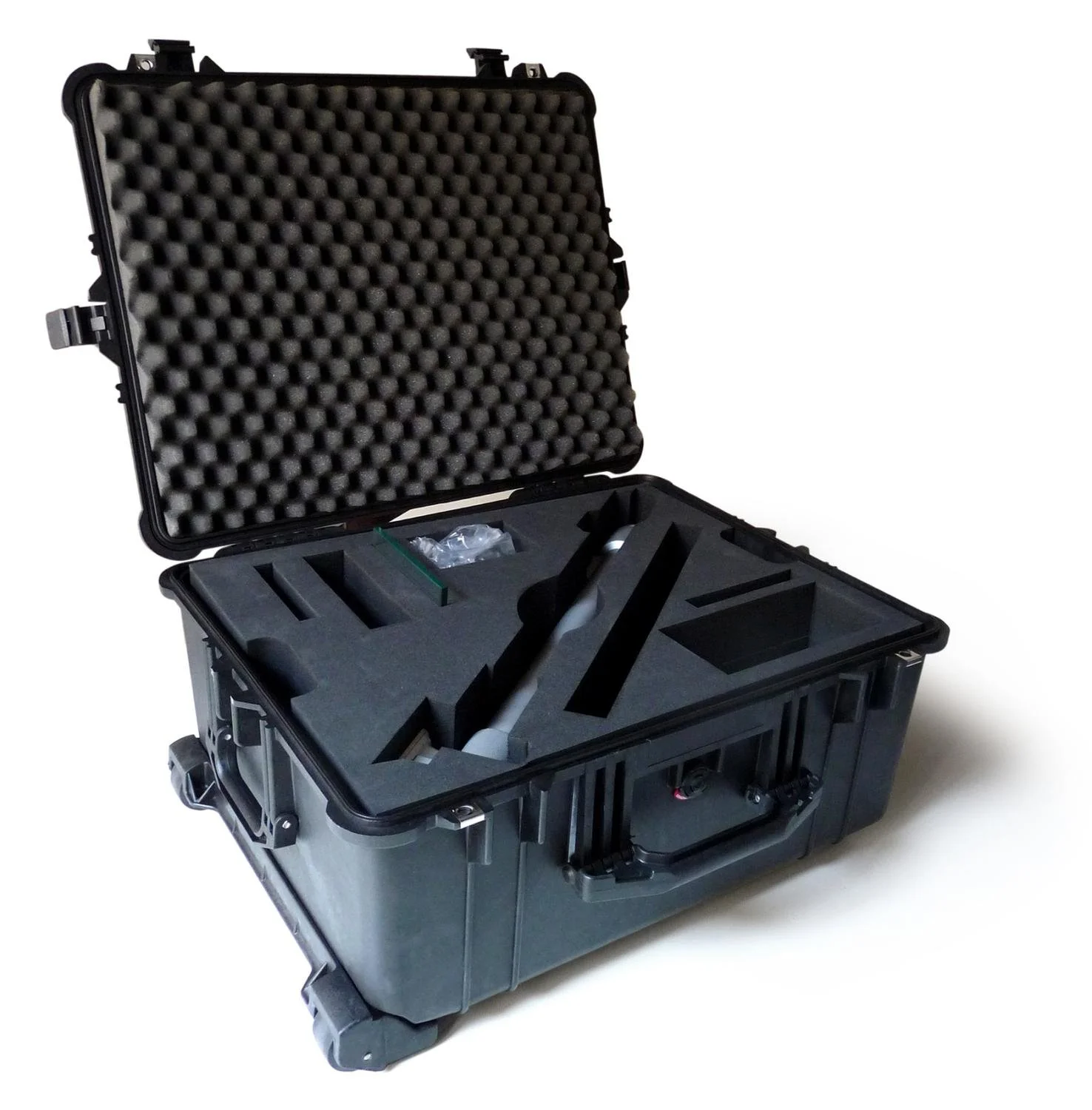

        Complete set in trolley case
        630 x 500 x 300 mm, 11 kg | 25 x 20 x 12 in, 24.3 lb
