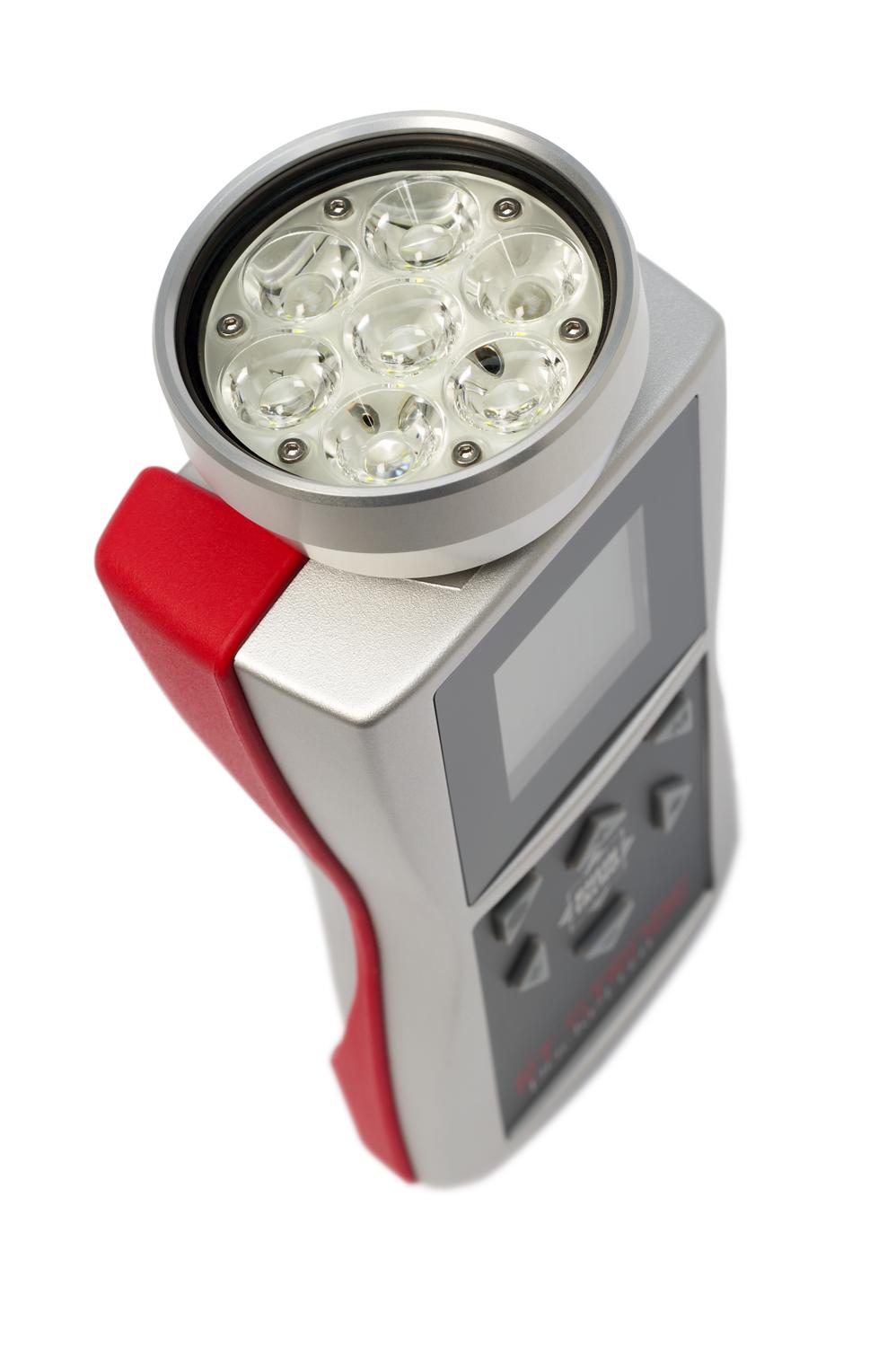

Feltest PocketStrobe LED
EXTREMELY PORTABLE AND WATERPROOF STROBE
The PocketStrobe LED is the PowerStrobe’s waterproof little brother and the ideal tool for inspecting machine parts like the forming table, trim squirts, HP showers and sheet edges. Freeze the moment and get the insight you are looking for.
Faster | Brighter | Tighter

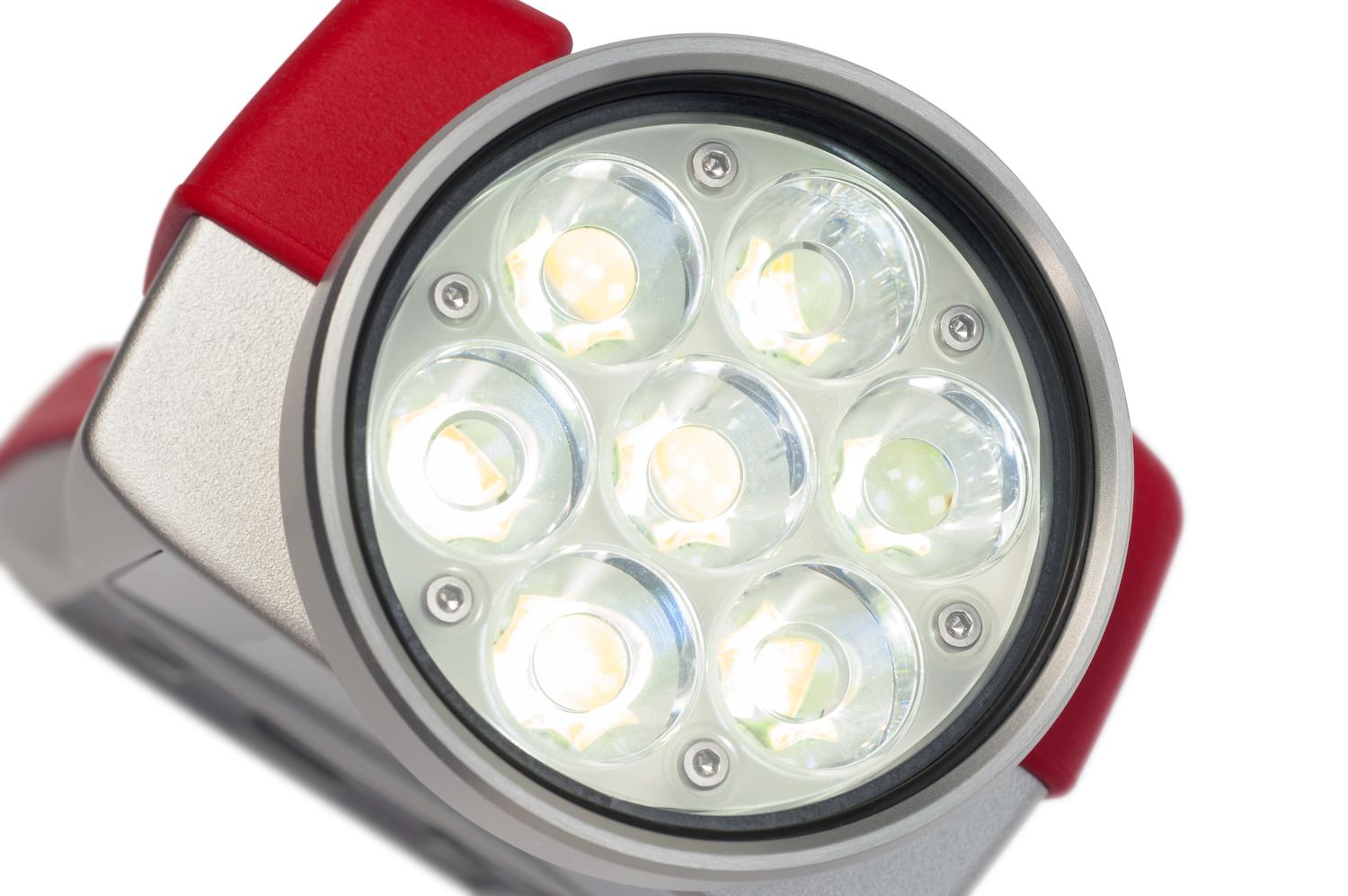

In terms of flash rate and light intensity the Pocket Strobe LED is second to none among the portable LED strobes world-wide. Cutting edge LEDs, intelligent electronics and a high quality optical assembly assure a bright and homogeneous illumination of fast moving objects.
The PocketStrobe LED fits in the palm of your hand, is robust and waterproof. Ideal for around the paper machine.
Applications
The number of applications in the paper industry is almost countless:
- Checking turbulence and stock jumping on the wire
- The jet impingement angle and forming table dewatering
- Dewatering pulsations, causing mass variations
- Inspecting trim nozzles and HP showers on air-enclosures
- Checking sheet drop-offs on the pickup felt
And so on…
Fill in the form and download the brochure
A unique feature of the PocketStrobe LED is that the flash duration can be set independently from the flash frequency.
The shorter the flash duration, the less distance is traveled by the viewed object and the sharper the image will get. However, the longer the flash duration, the more the object is illuminated. The choice is up to you!
FAQ's
Frequently asked questions about Feltest's portable PocketStrobe LED:
The number of applications in the paper industry is almost countless. These are just a few examples:
- Checking turbulence and stock jumping on the wire
- The jet impingement angle and forming table dewatering
- Dewatering pulsations, causing mass variations
- Inspecting trim nozzles and HP showers on air-enclosures
- Checking sheet drop-offs on the pickup felt
Approximately 5 hours at 6000 Flashes Per Minute (dependent on the settings). You can use standard disposable alkaline, AA-size batteries.
The Flash Rate range varies from 30 to 300 000 FPM (Flashes Per Minute).
Suppose, you want to have 2 light flashes per second. Then the frequency is 2 Hz or FPS (Flasher Per Second). In that case a total cycle (light off – light on – light off) lasts 500 ms, because 2 cycles make a 1000 ms (1 second).
The flash duration is the time period (in milliseconds) in which the light is on. The duration is limited by technology (the LED need some time to start emitting light) and the flash frequency (because at 2 FPS, the flash duration must be < 500 ms).
With the PocketStrobe LED you can set both the frequency and the duration. The shorter the flash duration, the less distance is traveled by the viewed object and the sharper the image will get. However, the longer the flash duration, the more the object is illuminated.
The choice is yours!
Please note that we do not sell the PowerStrobe anymore.
The difference is the size and the reach of the light beam: the PowerStrobe could be used from a far distance, as it had a narrow beam of light. Our PocketStrobe LED on the other hand, gives a wider, diverging light beam and because of that reaches less far – approximately 1 m | 3 ft.
“Fits in your pocket, 100% waterproof and very affordable - the PocketStrobe LED is perfect for a quick inspection.”
— MARCEL LENSVELT
“Fits in your pocket, 100% waterproof and very affordable - the PocketStrobe LED is perfect for a quick inspection.”
— MARCEL LENSVELT
“Fits in your pocket, 100% waterproof and very affordable - the PocketStrobe LED is perfect for a quick inspection.”
— MARCEL LENSVELT
| Specifications | PocketStrobe LED |
|---|---|

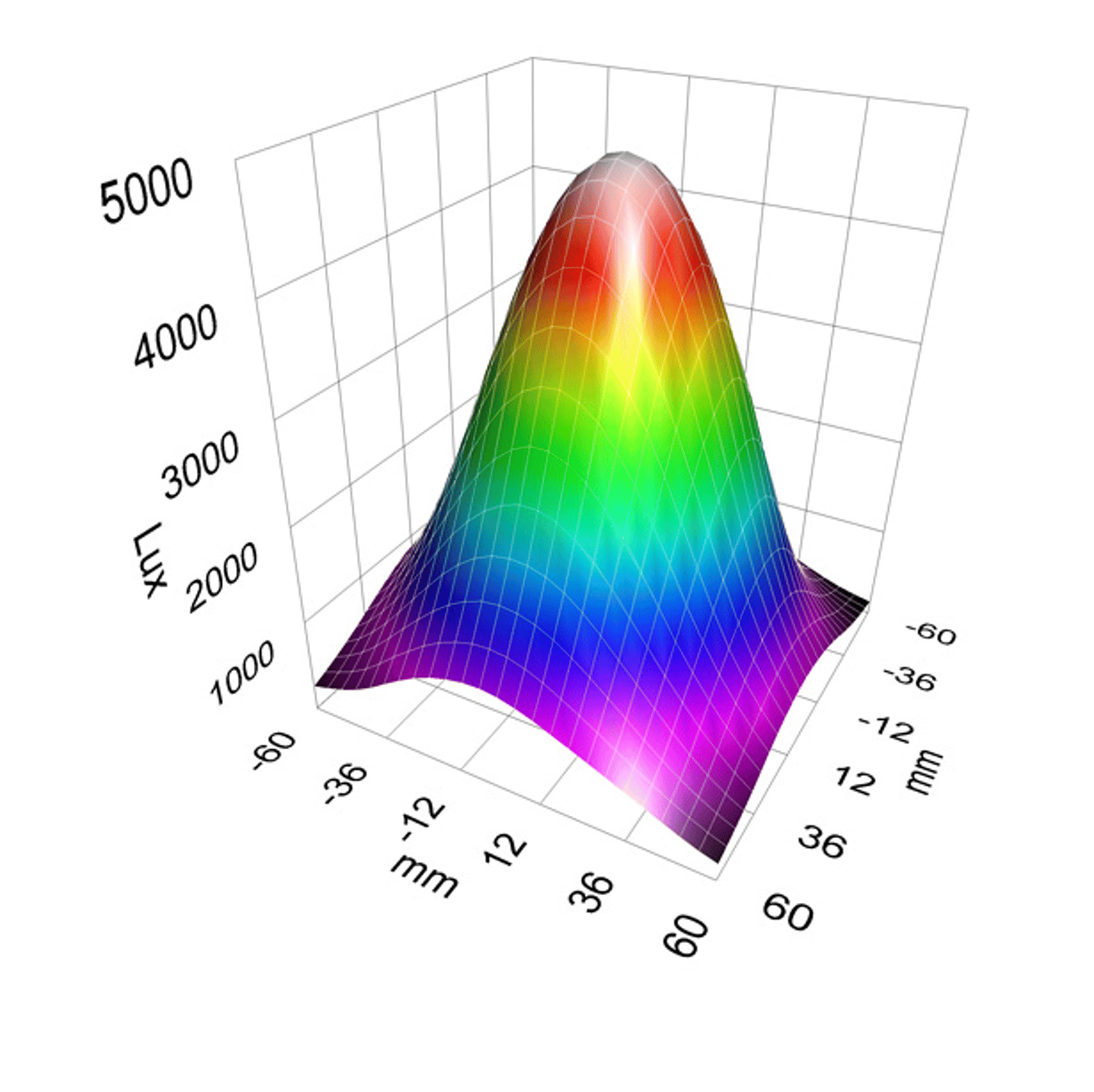

| Max. light output | 4800 lux @ 0.3m (1 ft) distance with 100% intensity, 6000 FPM |
| Flash rate range | 30 - 300 000 FPM (Flashes Per Minute) |
| Flash color | Approx. 6500K |
| Protection class | IP68 |
| Dimensions | 191 x 82 x 60 mm | 7.5 x 3.2 x 2.4" |
| Weight | 0.4 kg | 0.9 lbs (including batteries) |
| Batteries | 3x AA-size disposable batteries, rechargeable NiMH batteries are optional |
| Battery life | Approx. 5 hours @ 6000 FPM (dependent on settings) |
| Available settings and functions | Flash duration (shorter = sharper image, but less illumination) |
| Flash frequency and duration are set independently from each other | |
| Double or halve the current flash rate with just 1 button |
Get your PocketStrobe LED Quote
Get your quote instantly by adding it to your shopping basket and pressing the Request Quote button, or buy directly in our ONLINE STORE.
Any questions? Just reach out and our sales team will contact you shortly.
